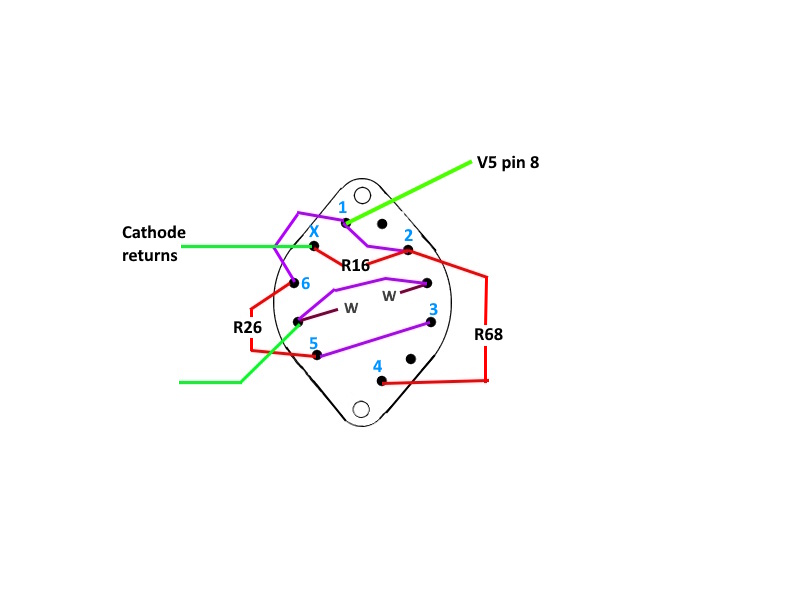

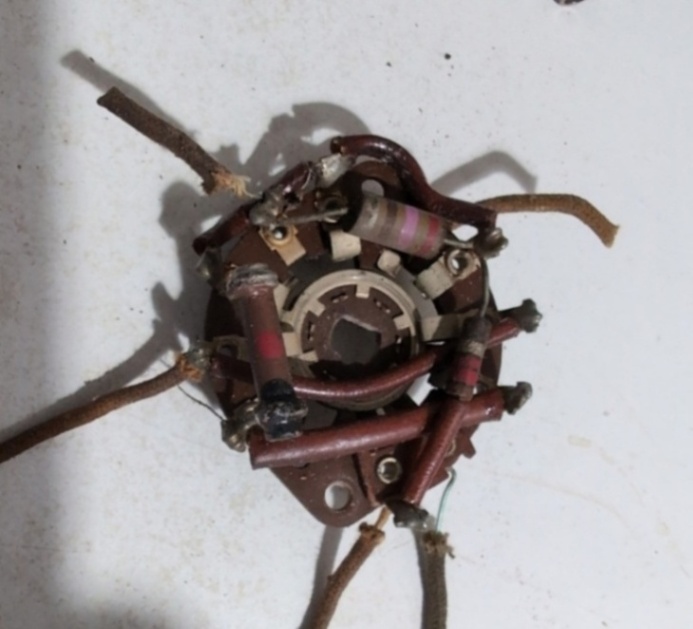

The SW8-14 switch has 3 resistors on it. This is the side of the wafer that faces away from the oscillator chassis.

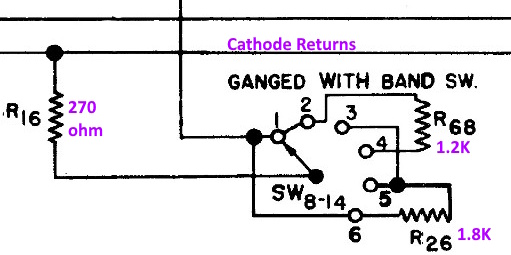

SW8-14 has it's very own schematic symbol that doesn't match anything else! It has something to do with the 'cathode returns'
and switching resistors in and out to the cathode of V5 in the 1st IF stage.
