AVC BFO Switch - Early B

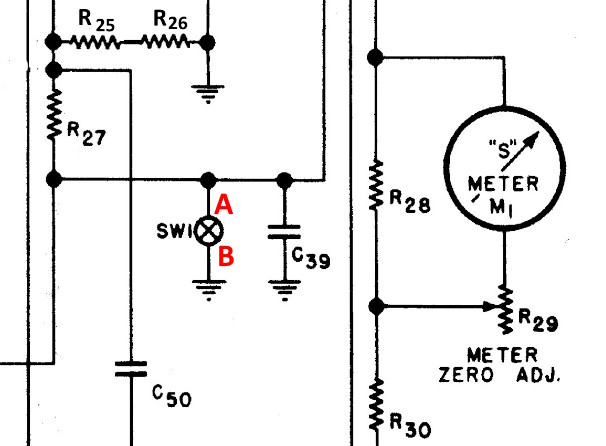

A

V7 Top Cap

B

Ground

C

No connection.

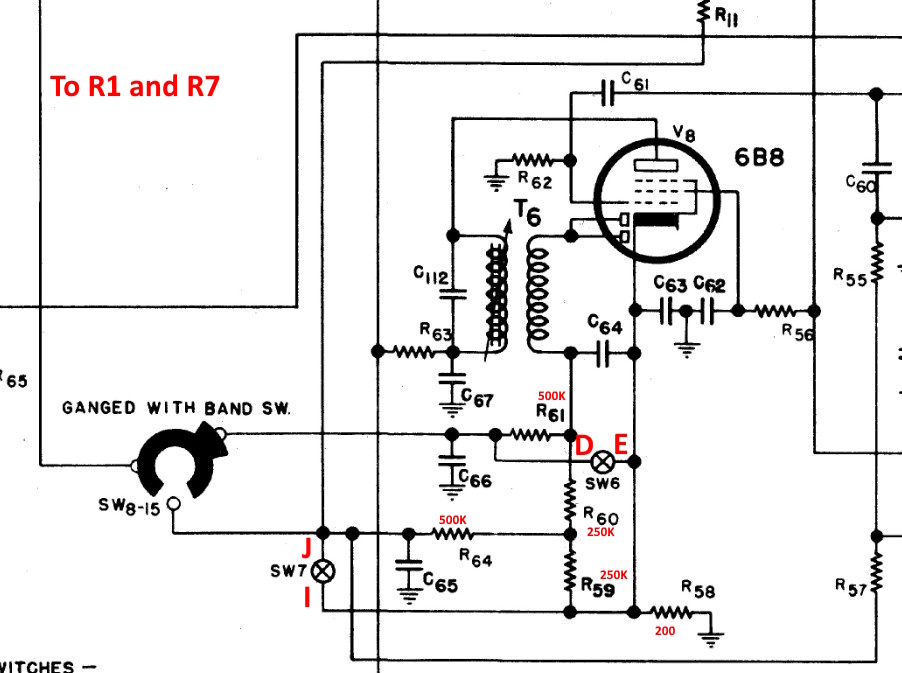

D

Goes to the junction of R61, C66 and SW8-15.

E, I

V8 pin 8, R58, R59, C63, C64

F

No connection.

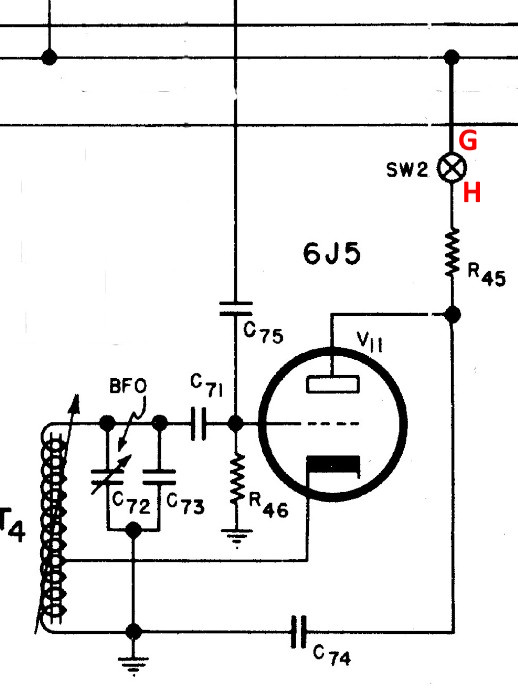

G

B+

H

Goes to R45 which goes to the plate of V11.

J

Goes to R11. R11 is located on T21 in the mixer section.
Also goes to C65, R64, and SW8-15.
