Assorted pictures taken during the recapping process. Mostly for those "Oh crap, where did that wire come from?" moments.

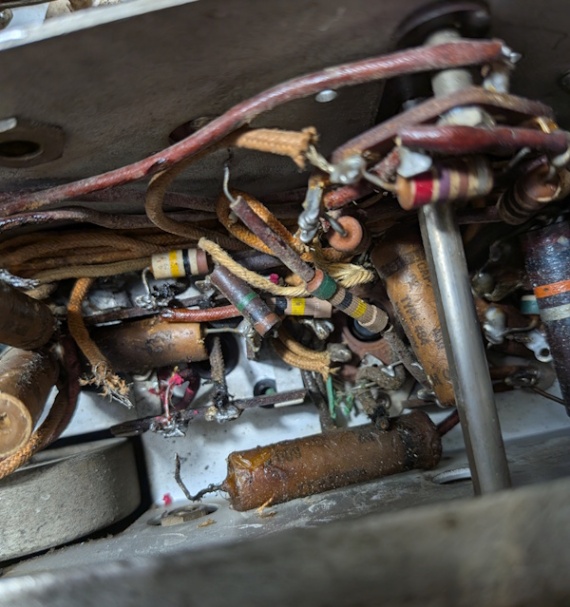

Tagged the 3 B+ wires with red Sharpie.
Tagged 2 cathode return wires with blue (sort of)

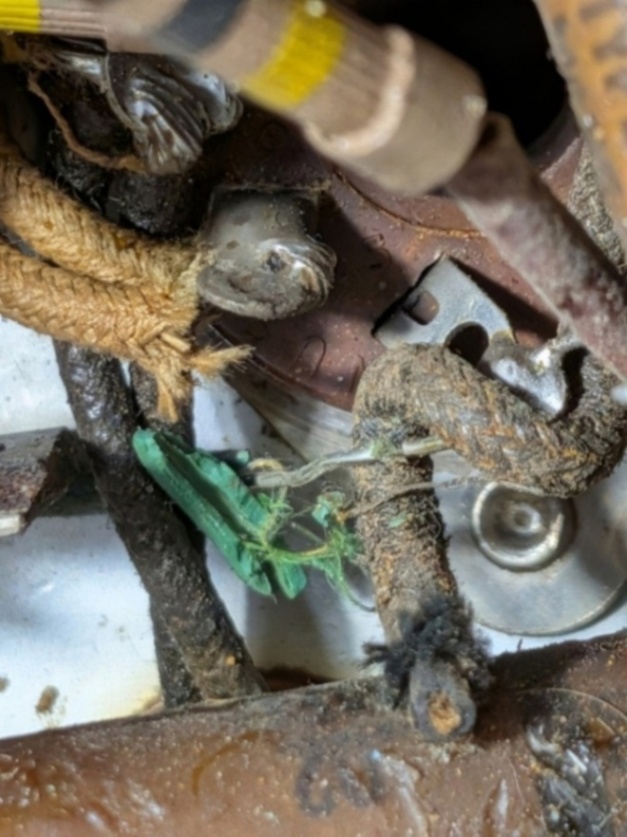

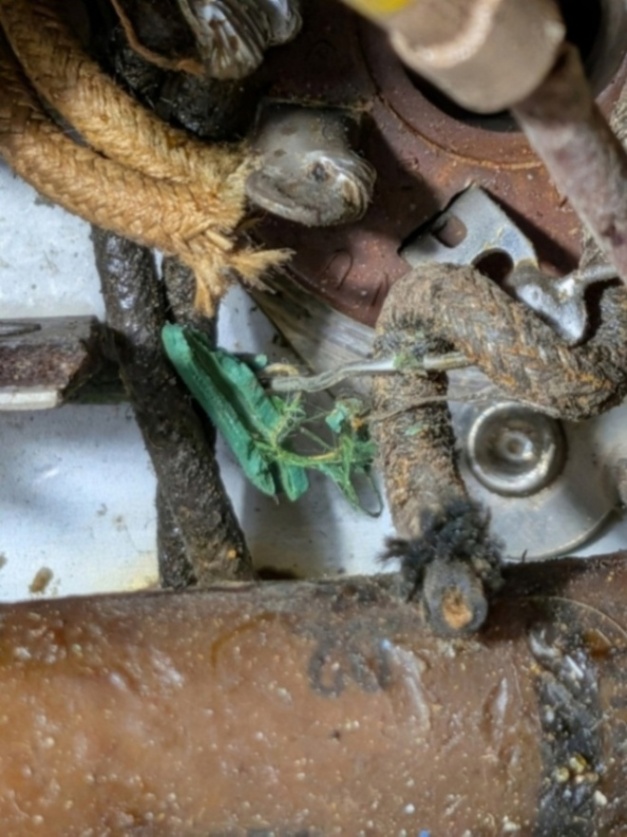

T3 green wire:

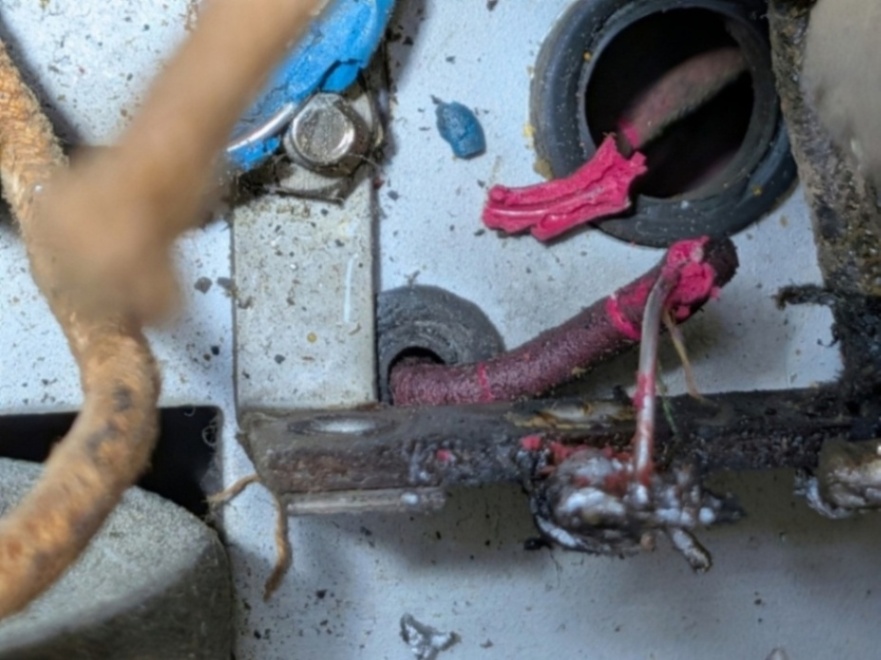

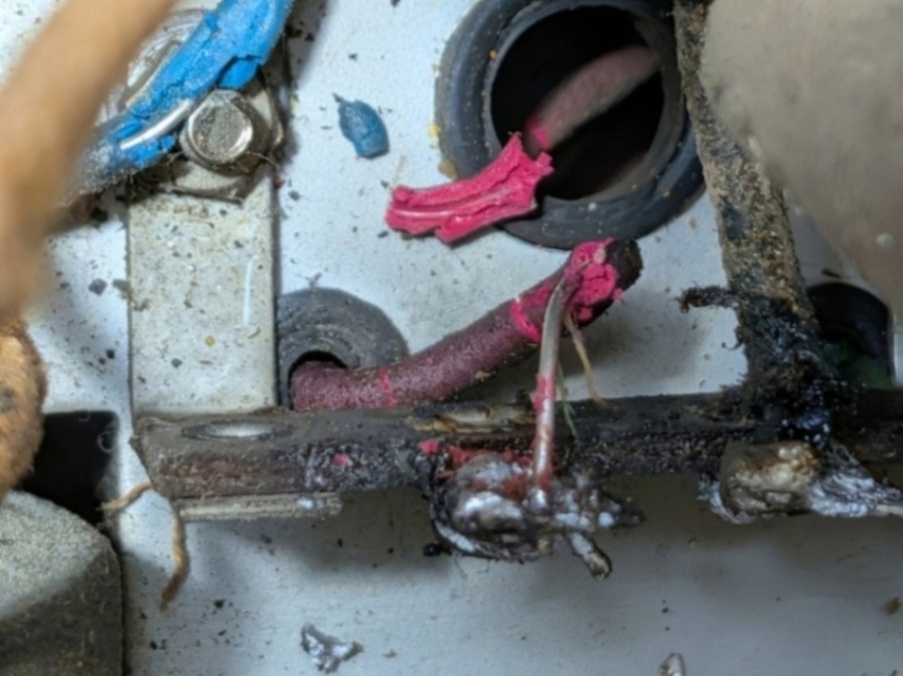

T3 red wire:

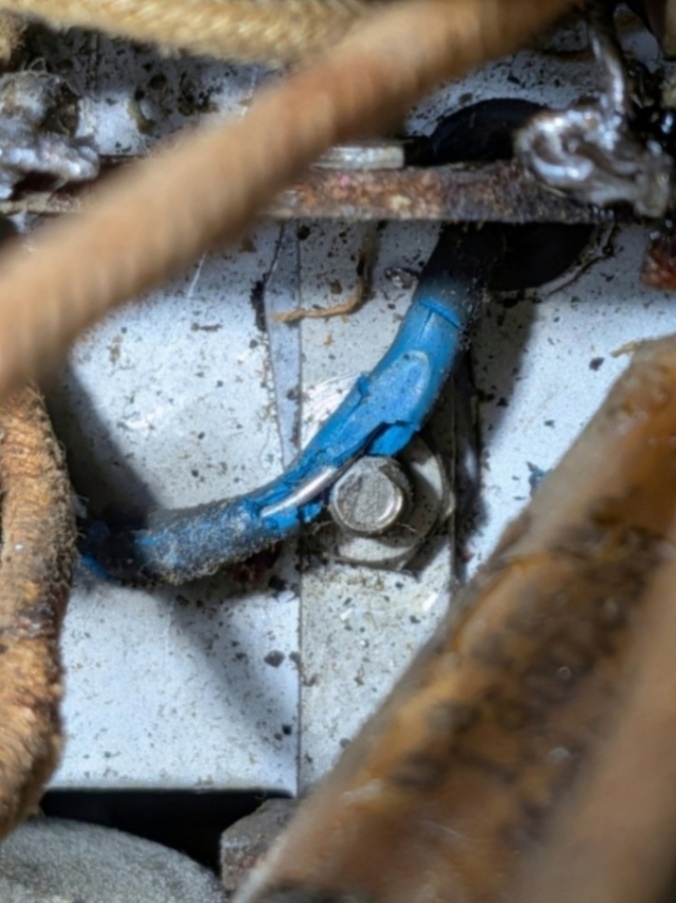

T3 blue wire:
T3 black wire:
MISSING PICS

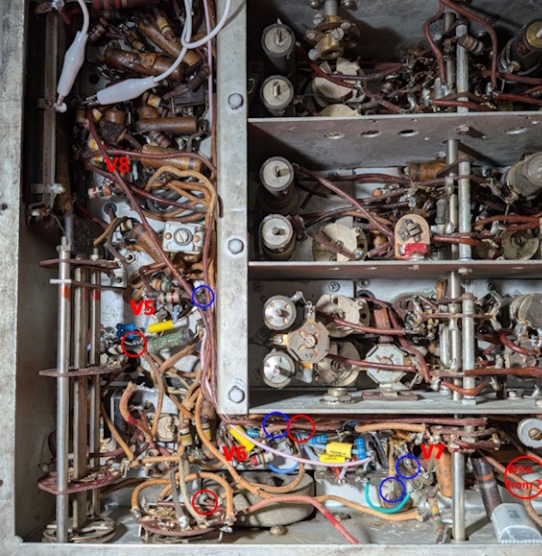

In preparation for re-doing the screen voltage distribution. Blue circles are the points to be
connected with blue wire. Includes adding an extension to a wire that is just buried. It's supposed to go to V2 pin 6 via R9 (1k ohm).
